Crate Washers

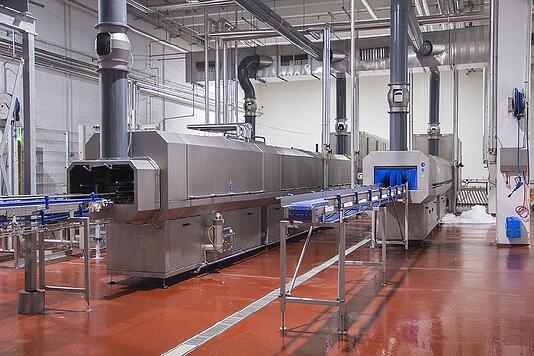

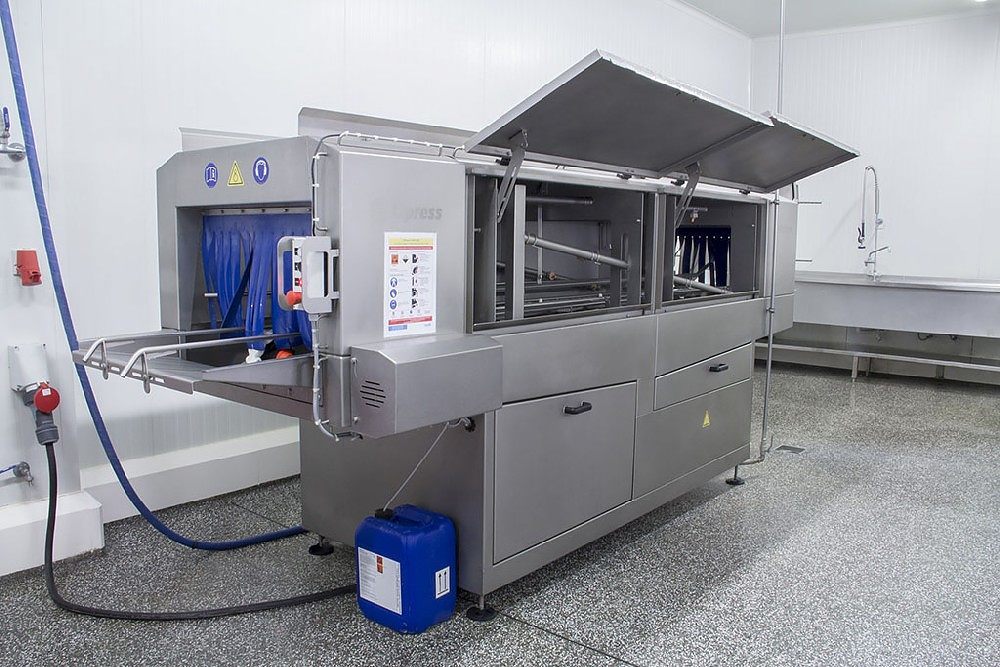

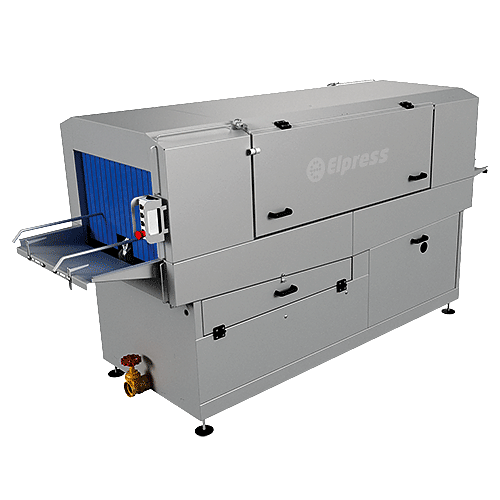

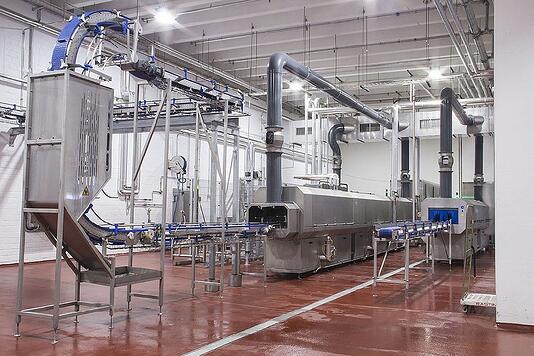

The entire system is constructed out of stainless steel plates and profiles and is placed on adjustable feet. The wash tunnel is accessible by means of very practical upward folding-doors. When a door is opened during operation, the washer will stop instantly. Transport of the crates is conducted by a synthetic chain. The spraying arcs are provided with a large number of synthetic click nozzles. The EKW crate washers are designed for crates with a maximum dimension of 600 x 400 x 300 mm (lxwxh).

In the main wash zone the crates are cleaned and the dirt is removed from the crates. The click nozzles are supplied with water by a powerful and energy efficient pump. The main wash tank is filled by its own filling connection, equipped with level sensors.

In the after rinse zone the crates are rinsed with fresh water. Any residual detergent will be removed. A sensor controls the after rinse bow. If no crates are detected the fresh water supply will remain closed.


  • Energy efficient
  • Easy adjustable click-nozzles
  • Stainless steel
  • Optional one man operation
